Swing-out pantry unit
The swing-out pantry unit becomes synonymous with a well-organized pantry. The Lamina baskets - easily detachable to allow effective cleaning - have a sheet metal bottom and edge. However, thanks to the structure universality, it is possible to accessorize and customize the swing-out pantry unit with baskets belonging to other ranges.
The wide opening assures the maximum of practicality in order to organize and optimize the swing-out pantry unit.
Features and benefits
- Self-supporting structure, detachable from the cabinet door for an easy cleaning
- Suitable for 120° cabinet door opening
- Reversible mechanism, compatible with the baskets from other ranges
- Swing-out pantry unit only door is available
- Baskets with sheet metal bottom and edge
- Removable baskets for an easy cleaning
- Kit of 2 inner baskets
- Kit of 2 door baskets
- For H 1150 structure 2 kits of inner baskets and 2 kits of door baskets are recommended
- For H 1675 structure 3 kits of inner baskets and 3 kits of door baskets are recommended
- Frame | max. load capacity 130 kg
- Inner baskets | max. load capacity 20 kg per basket
- Door baskets | max. load capacity 5 kg per basket
Available finishes
VGM
Epoxy-coated Grigio Materico
VNM
Epoxy-coated Nero Materico
Necessary components

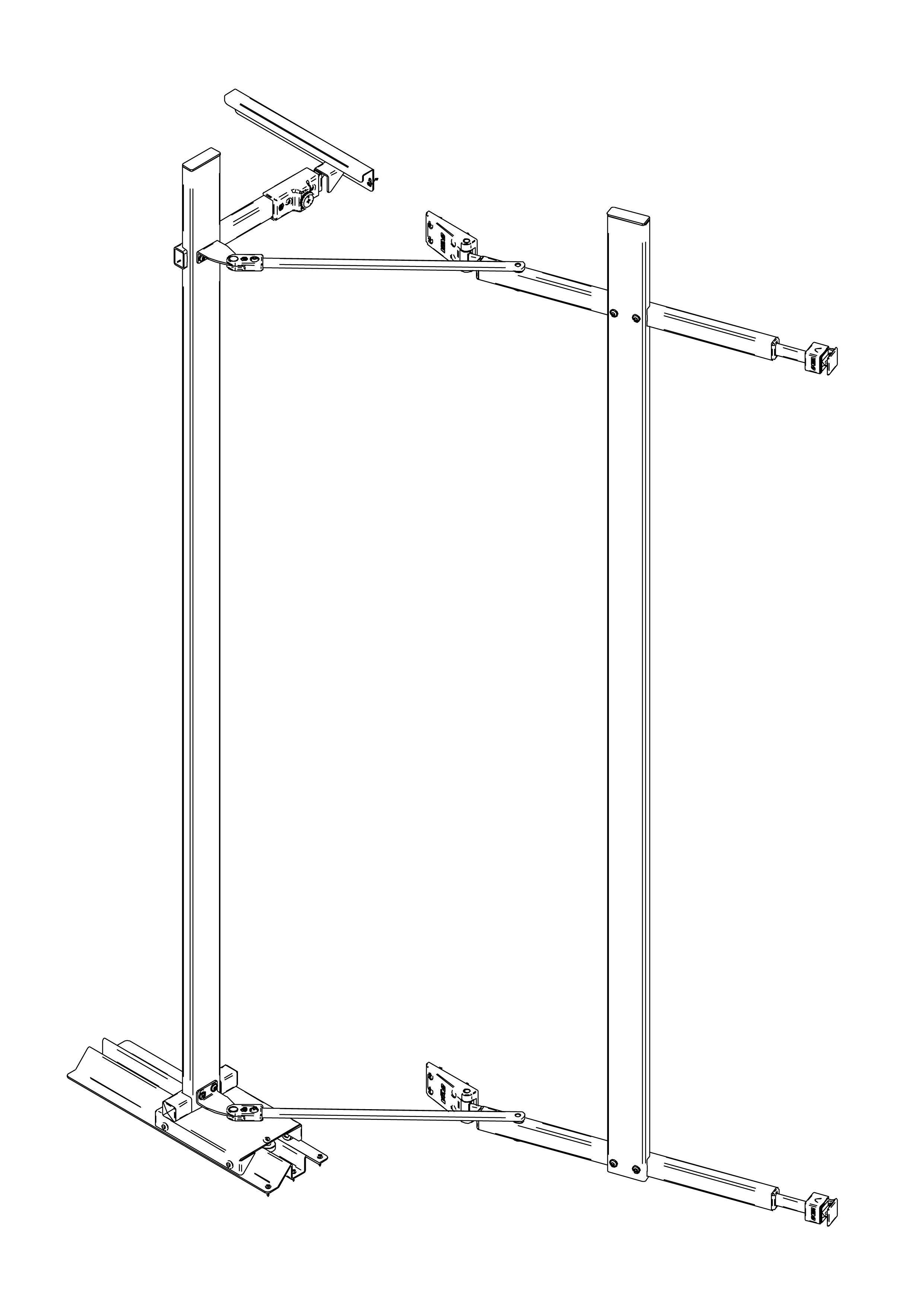

Swing-out pantry unit frame
EDS1154/20
EDS1704/20
EDS1155/20
EDS1705/20
EDS1156/20
EDS1706/20
EDS1157/20
EDS1707/20
VGM
Epoxy-coated Grigio Materico
Epoxy-coated Grigio Materico
VNM
Epoxy-coated Nero Materico
Epoxy-coated Nero Materico

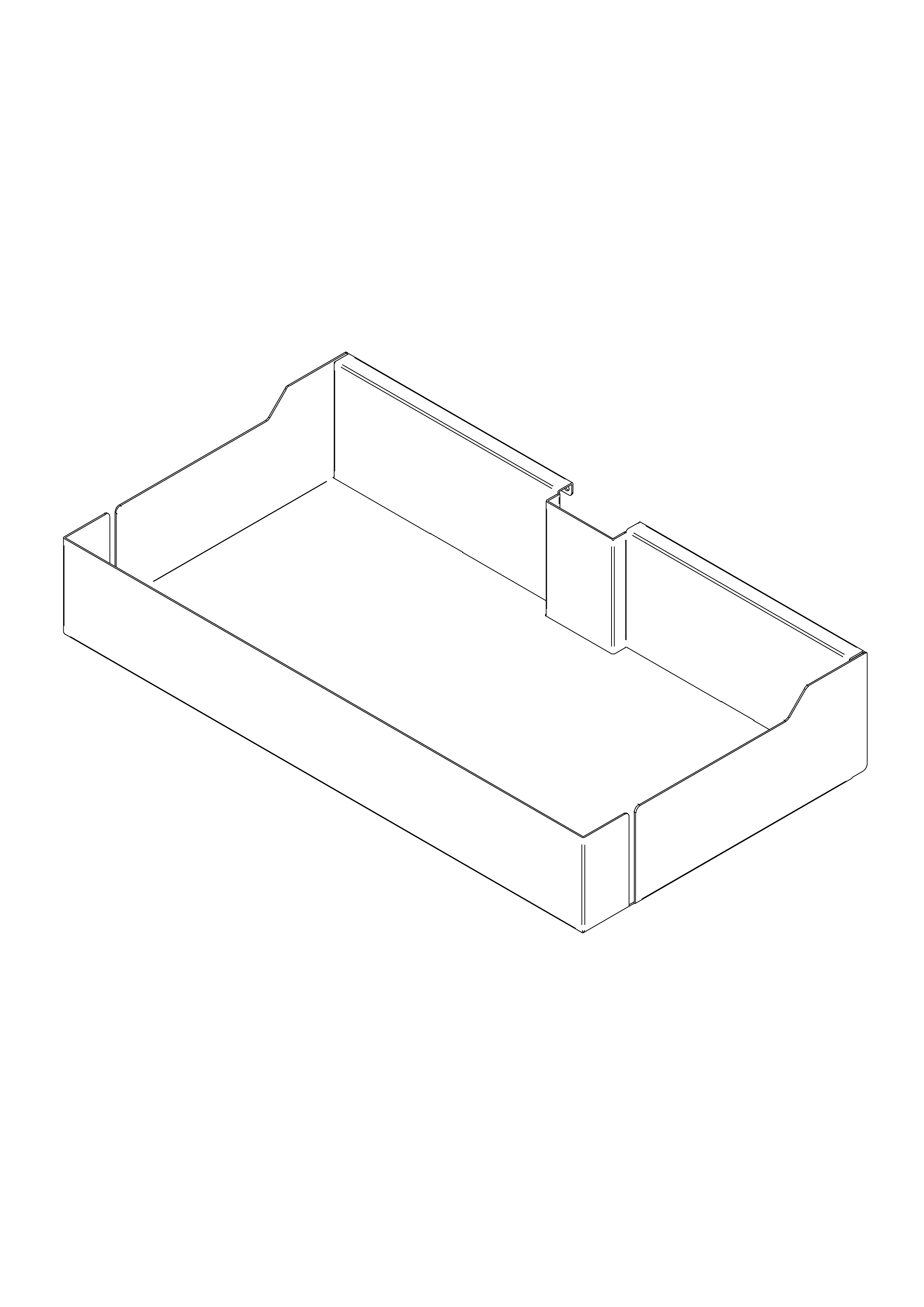

Inner baskets Lamina
EDCI45M2L/20
EDCI50M2L/20
EDCI60M2L/20
EDCI75M2L/20
VGM
Epoxy-coated Grigio Materico
Epoxy-coated Grigio Materico
VNM
Epoxy-coated Nero Materico
Epoxy-coated Nero Materico

Door baskets Lamina
EDCP45M2L/20
EDCP50M2L/20
EDCP60M2L/20
EDCP75M2L/20
EDCP50M2L/20
EDCP60M2L/20
EDCP75M2L/20
VGM
Epoxy-coated Grigio Materico
Epoxy-coated Grigio Materico
VNM
Epoxy-coated Nero Materico
Epoxy-coated Nero Materico

Technical Information
Complete the line Lamina with other items
