Swing-out pantry unit
The swing-out pantry unit becomes synonymous with a well-organized pantry. The Urban baskets - easily detachable to allow effective cleaning - have an aluminum edge and a melamine bottom. However, thanks to the structure universality, it is possible to accessorize and customize the swing-out pantry unit with baskets belonging to any other Vibo range.
The wide opening assures the maximum of practicality in order to organize and optimize the larder unit.
Features and benefits
- Self-supporting structure, detachable from the cabinet door for an easy cleaning
- Suitable for 120° cabinet door opening
- Reversible mechanism, compatible with the baskets from other ranges
- Swing-out pantry unit only door is available
- Baskets with aluminum edge and melamine bottom
- Removable baskets for an easy cleaning
- Kit of 2 inner baskets
- Kit of 2 door baskets
- For H 1150 structure 2 kits of inner baskets and 2 kits of door baskets are recommended
- For H 1675 structure 3 kits of inner baskets and 3 kits of door baskets are recommended
- Frame | max. load capacity 130 kg
- Inner baskets | max. load capacity 20 kg per basket
- Door baskets | max. load capacity 5 kg per basket
Available finishes
VGM
Epoxy-coated Grigio Materico
VNM
Epoxy-coated Nero Materico
VNF
Epoxy-coated flat black
Necessary components

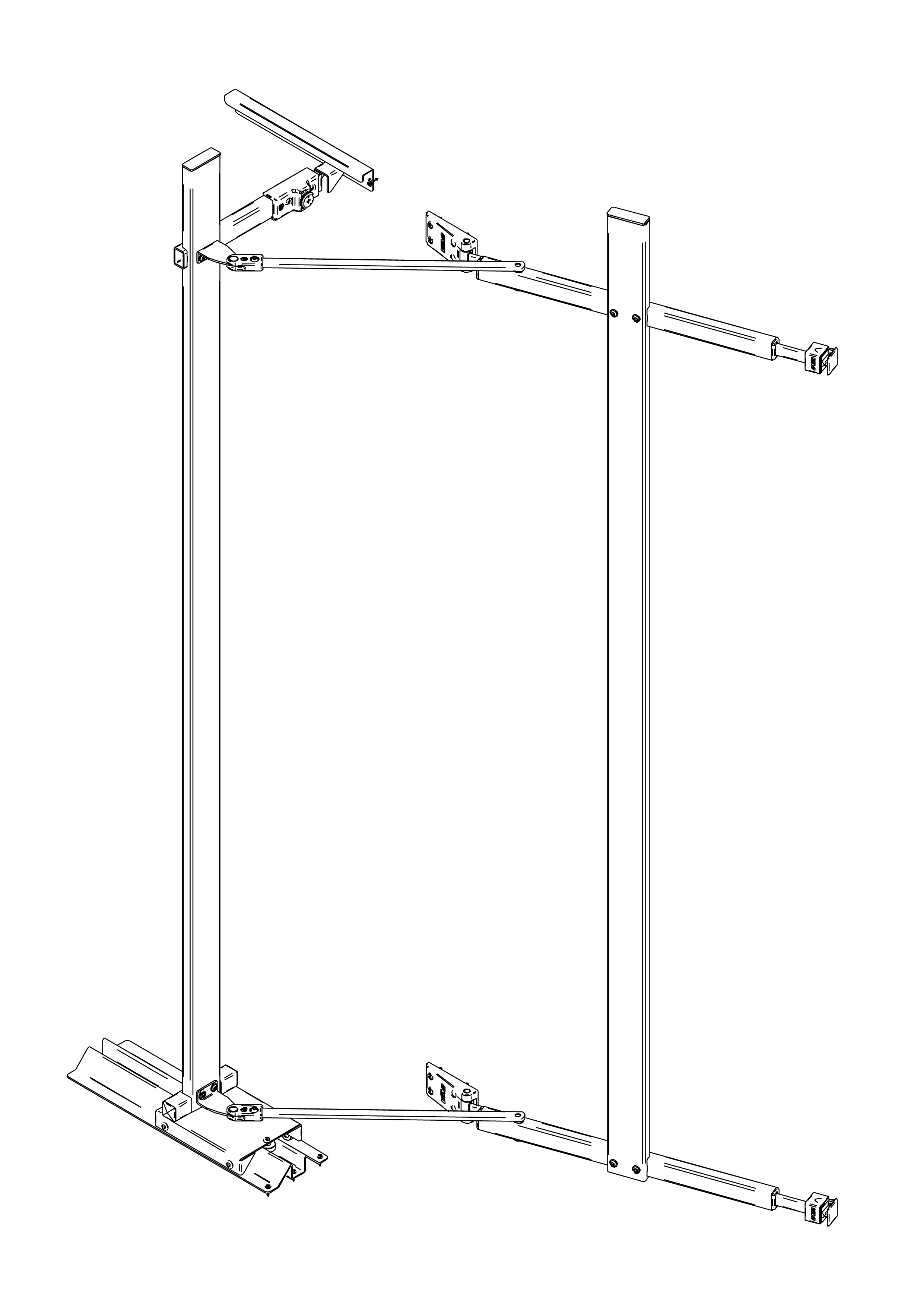

Swing-out pantry unit frame
EDS1154/20
EDS1704/20
EDS1155/20
EDS1705/20
EDS1156/20
EDS1706/20
EDS1157/20
EDS1707/20
VGM
Epoxy-coated Grigio Materico
Epoxy-coated Grigio Materico
VNM
Epoxy-coated Nero Materico
Epoxy-coated Nero Materico
VNF
Epoxy-coated flat black
Epoxy-coated flat black

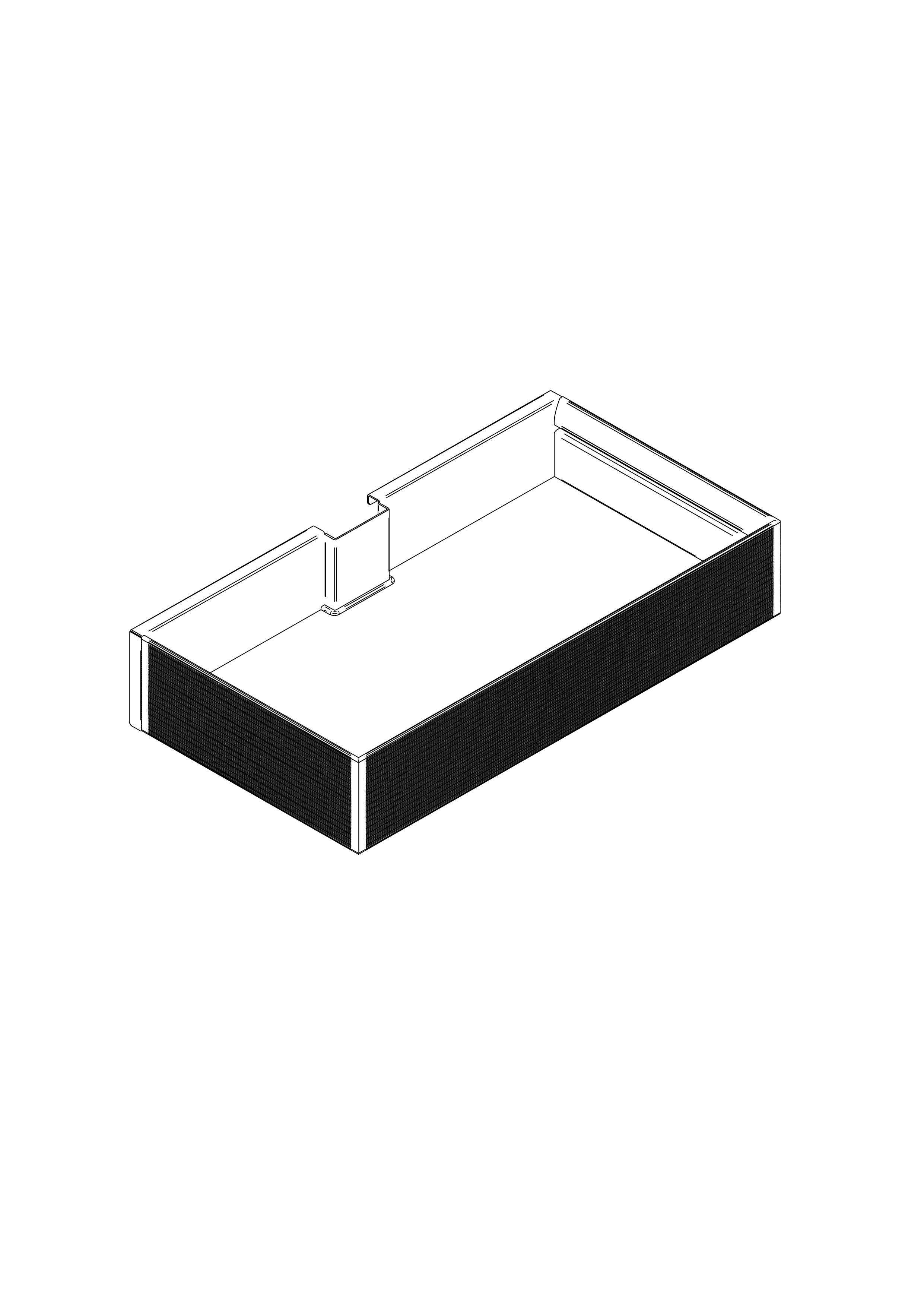

Inner baskets Urban
EDCI45M2U/20
EDCI50M2U/20
EDCI60M2U/20
EDCI75M2U/20
VGM
Epoxy-coated Grigio Materico
Epoxy-coated Grigio Materico
VNM
Epoxy-coated Nero Materico
Epoxy-coated Nero Materico
VNF
Epoxy-coated flat black
Epoxy-coated flat black

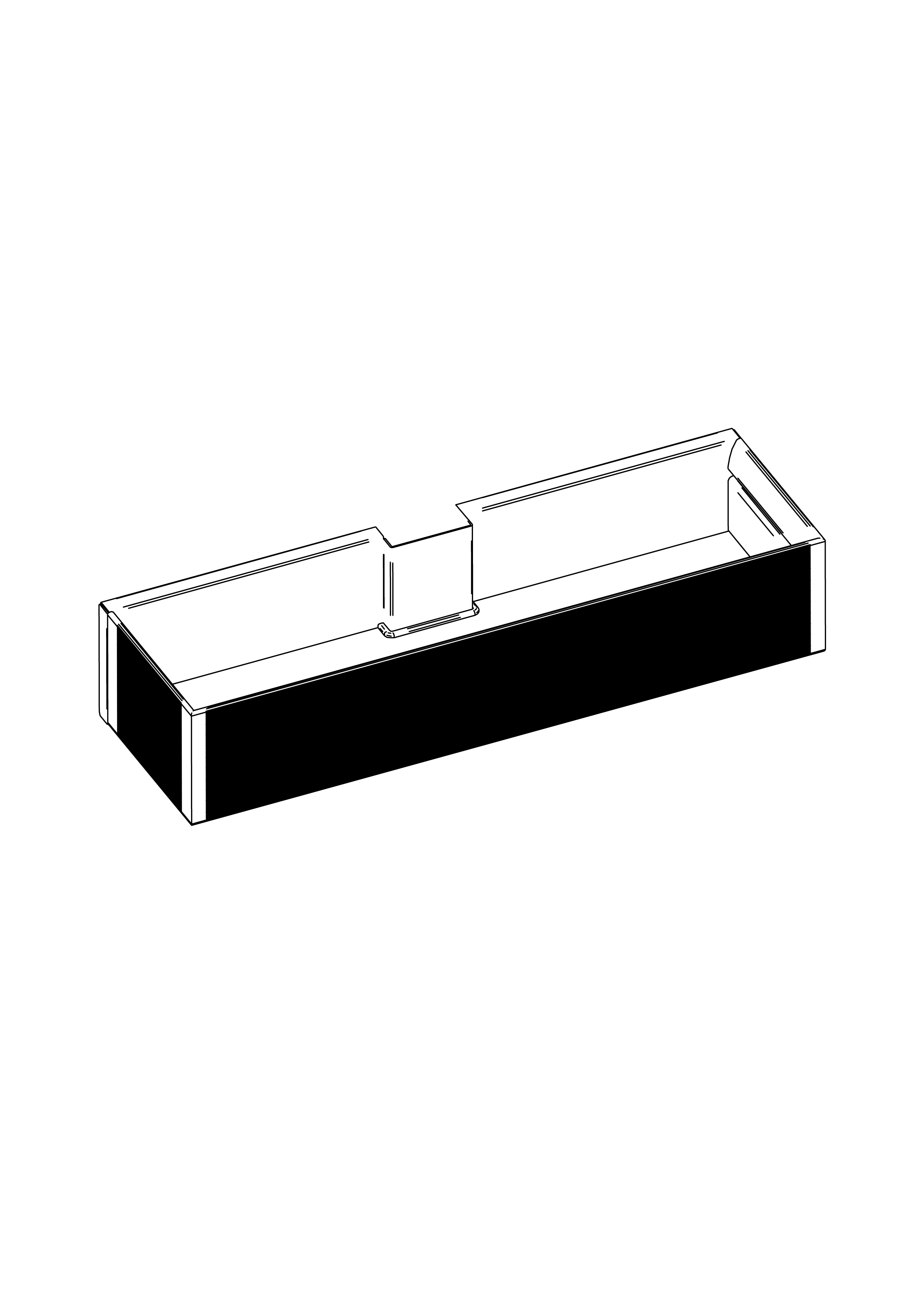

Door baskets Urban
EDCP45M2U/20
EDCP50M2U/20
EDCP60M2U/20
EDCP75M2U/20
VGM
Epoxy-coated Grigio Materico
Epoxy-coated Grigio Materico
VNM
Epoxy-coated Nero Materico
Epoxy-coated Nero Materico
VNF
Epoxy-coated flat black
Epoxy-coated flat black

Technical Information
Complete the line Urban with other items
